Home > Commercial laundry equipment > Commercial washing machines > Coin-operated washing machines > JLA Coin-Operated SMART Washing Machines

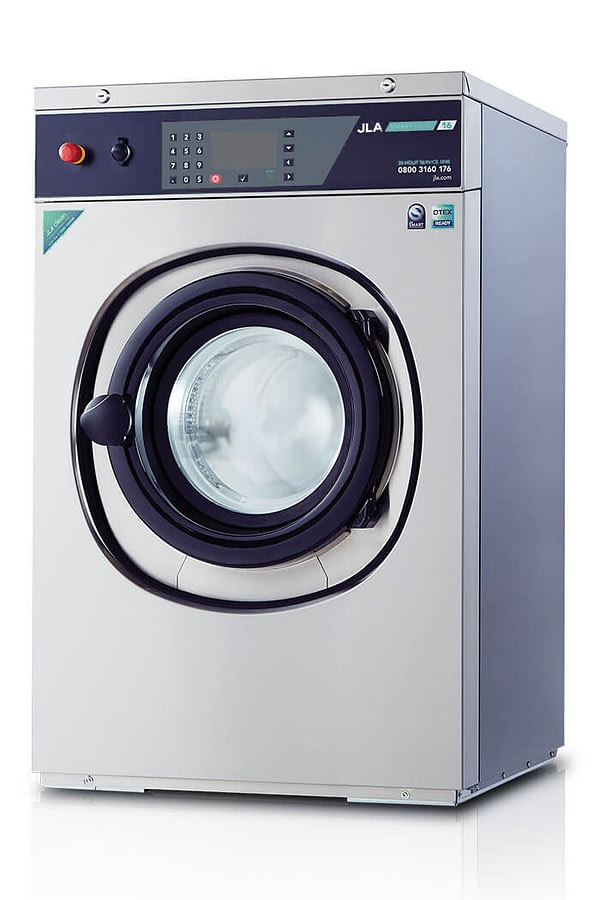

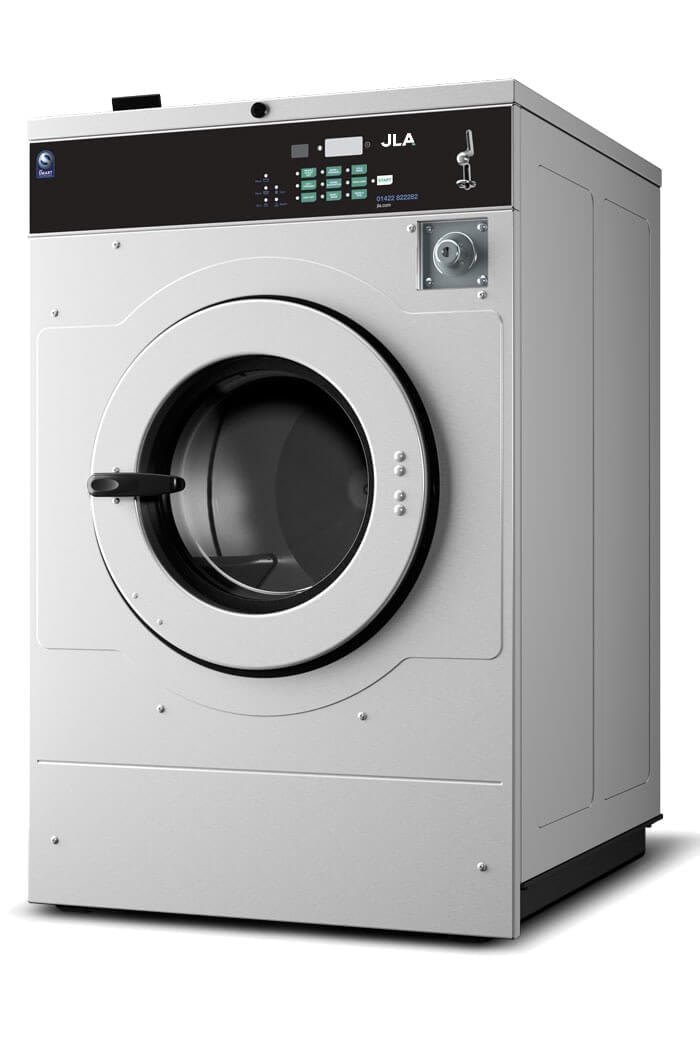

JLA Coin-Operated SMART Washing Machines (7.5kg – 18kg)


Rigid or free-standing
Built to last
Universal wash symbols
Thanks to the help of countless hours of research and development, we’ve ensured our JLA SMART washing machines are faster, greener, stronger and smarter.
All of our SMART washing machines include a robust mechanism. Extra-large integrated cash boxes reduce the need for frequent emptying and a full auditing of cycle counts and monies received plus a time of day pricing modifier ensure that revenue is always maximised.
Specification
| Capacity kg/lb | 7.5/16 |
| Height mm (including feet) | 1139 |
| Width mm | 710 |
| Depth mm | 790 |
| Weight kg/lb | 185/408 |
| Drum Volume litres | 75 |
| Spin Speed rpm | 1165 |
| G-Force | 400 |
| Door Opening Diameter mm | 330 |
| Electrics | |
| 4.6 kW 1ph | 1ph/230V / 32A (std) |
| 6 kW 3ph | 3ph+N/ 400V/ 16A ph |
| 9 kW 3ph | – |
| 12 kW 3ph | – |
| 18 kW 3ph | – |
| 21.9 kW 3ph | – |
| Steam Heated/Boiler Fed | 1ph/230V/ 16A |
| No of Water connections (hot/cold) | 1/1 |
| Water Connection Size BSP | 3/4” |
| Gravity Drain Connection Diameter inch/mm | 3/76 |
| (Optional) Steam Rating per cycle kg | 1.33 |
| (Optional) Steam Connection Size inch | 1/2 |
| Capacity kg/lb | 10/22 |
| Height mm (including feet) | 1249 |
| Width mm | 795 |
| Depth mm | 795 |
| Weight kg/lb | 210/463 |
| Drum Volume litres | 105 |
| Spin Speed rpm | 1075 |
| G-Force | 400 |
| Door Opening Diameter mm | 410 |
| Electrics | |
| 4.6 kW 1ph | – |
| 6 kW 3ph | 1ph/230V / 32A |
| 9 kW 3ph | 3ph+N/400V/ 20A ph (std) |
| 12 kW 3ph | – |
| 18 kW 3ph | – |
| 21.9 kW 3ph | – |
| Steam Heated/Boiler Fed | 1ph/230V/ 16A |
| No of Water connections (hot/cold) | 1/1 |
| Water Connection Size BSP | 3/4” |
| Gravity Drain Connection Diameter inch/mm | 3/76 |
| (Optional) Steam Rating per cycle kg | 1.4 |
| (Optional) Steam Connection Size inch | 1/2 |
| Capacity kg/lb | 13.5/30 |
| Height mm (including feet) | 1249 |
| Width mm | 795 |
| Depth mm | 945 |
| Weight kg/lb | 255/563 |
| Drum Volume litres | 135 |
| Spin Speed rpm | 1075 |
| G-Force | 400 |
| Door Opening Diameter mm | 410 |
| Electrics | |
| 4.6 kW 1ph | – |
| 6 kW 3ph | 1ph/230V / 32A |
| 9 kW 3ph | 3ph+N/400V/ 20A ph |
| 12 kW 3ph | 3ph+N ; 400V/32A ph (std) |
| 18 kW 3ph | – |
| 21.9 kW 3ph | – |
| Steam Heated/Boiler Fed | 1ph/230V/ 16A |
| No of Water connections (hot/cold) | 1/1 |
| Water Connection Size BSP | 3/4” |
| Gravity Drain Connection Diameter inch/mm | 3/76 |
| (Optional) Steam Rating per cycle kg | 2.1 |
| (Optional) Steam Connection Size inch | 1/2 |
| Capacity kg/lb | 18/40 |
| Height mm (including feet) | 1434 |
| Width mm | 970 |
| Depth mm | 970 |
| Weight kg/lb | 380/838 |
| Drum Volume litres | 180 |
| Spin Speed rpm | 980 |
| G-Force | 400 |
| Door Opening Diameter mm | 460 |
| Electrics | |
| 4.6 kW 1ph | – |
| 6 kW 3ph | – |
| 9 kW 3ph | – |
| 12 kW 3ph | 3ph+N ; 400V/32A ph |
| 18 kW 3ph | 3ph+N ; 400V/40A ph (std) |
| 21.9 kW 3ph | – |
| Steam Heated/Boiler Fed | 1ph/230V/ 16A |
| No of Water connections (hot/cold) | 1/1 |
| Water Connection Size BSP | 3/4” |
| Gravity Drain Connection Diameter inch/mm | 3/76 |
| (Optional) Steam Rating per cycle kg | 5.48 |
| (Optional) Steam Connection Size inch | 1/2 |
| Capacity | kg/lb | 9/20 |
| Height | mm | 1092 |
| Width | mm | 660 |
| Depth | mm | 784 |
| Net weight | kg/lb | 152/335 |
| Drum volume | litres | 78.1 |
| Spin speed | rpm | 819 |
| G Force | 200 | |
| Door opening diameter | mm | 295 |
| Electrics | ||
| Steam heated/Boiler fed | 230V/50Hz/1ph – 10A | |
| No of water connections (hot/cold) | 2 (1/1) | |
| Water connection size | BSP | 3/4” |
| Gravity drain size | mm | 50 |
| Steam consumption per cycle | kg/lb | 5.3/11.7 |
| Steam connection size | BSP | 1/2” |
| Capacity | kg/lb | 13.5/30 |
| Height | mm | 1143 |
| Width | mm | 737 |
| Depth | mm | 896 |
| Net weight | kg/lb | 209/460 |
| Drum volume | litres | 118 |
| Spin speed | rpm | 766 |
| G Force | 200 | |
| Door opening diameter | mm | 364 |
| Electrics | ||
| Steam heated/Boiler fed | 230V/50Hz/1ph – 10A | |
| No of water connections (hot/cold) | 2 (1/1) | |
| Water connection size | BSP | 3/4” |
| Gravity drain size | mm | 50 |
| Steam consumption per cycle | kg/lb | 6.4/14.1 |
| Steam connection size | BSP | 1/2” |
| Capacity | kg/lb | 18/40 |
| Height | mm | 1199 |
| Width | mm | 778 |
| Depth | mm | 1073 |
| Net weight | kg/lb | 249/548 |
| Drum volume | litres | 180 |
| Spin speed | rpm | 733 |
| G Force | 200 | |
| Door opening diameter | mm | 413 |
| Electrics | ||
| Steam heated/Boiler fed | 230V/50Hz/1ph – 10A | |
| No of water connections (hot/cold) | 2 (1/1) | |
| Water connection size | BSP | 3/4” |
| Gravity drain size | mm | 76 |
| Steam consumption per cycle | kg/lb | 12.2/26.9 |
| Steam connection size | BSP | 1/2” |

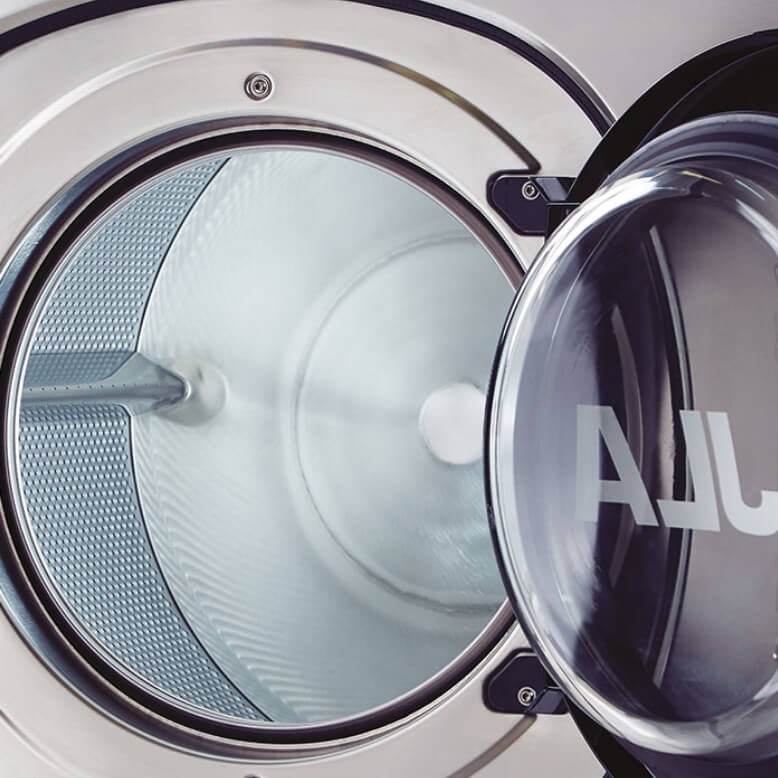

Low-and-large door opening
For the easy loading and unloading of bulky items.
‘Waterfall’ drum perforation
Easy-to-use mechanism

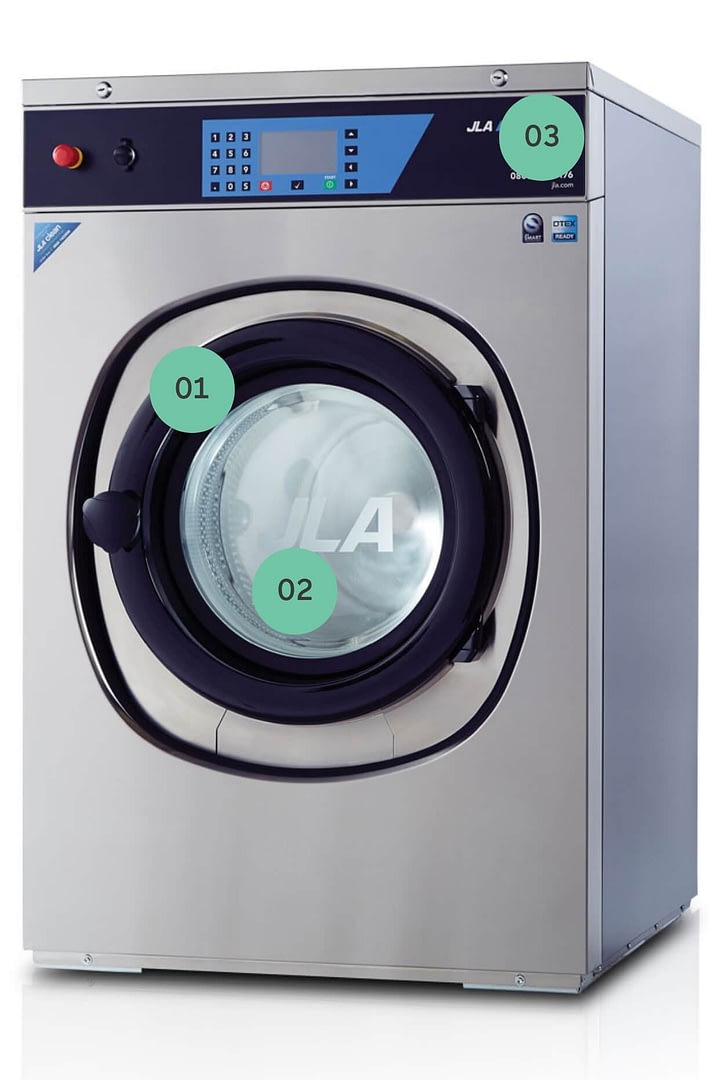

Features you'll love
Two-touch start
Clear wash cycle display
Smart monitoring functionality
Why JLA SMART Washers are smart
Discover why the JLA SMART washing machines are an innovative solution and trusted across various industries
From smart connectivity to best-in-class features, our Smart Guide demonstrates how to use the latest technology to optimise your laundry operations, make efficiencies and ensure your laundry is always fresh after each load.
Benefits for business owners and their customers
Our SMART washing machines with industrial-grade build quality, reliable operation and drums with multi-coin mechanisms all combine to maximise your wash capacity and boost your income.
Revive your laundry routine with smart laundry technology that delivers improved features and functionality where it matters. You can increase revenue with state-of-the-art cashless payment systems, while your customers get the best results every time.
Choose a model that suits you
Many of our SMART washing machines are stackable, so they fit right into your existing laundry routine and setup.
Plus, detergent auto-dosing is available. With this option, you can open up extra revenue streams and reduce mess, all while benefiting from smart connectivity and other advanced features these machines afford
Also available with...

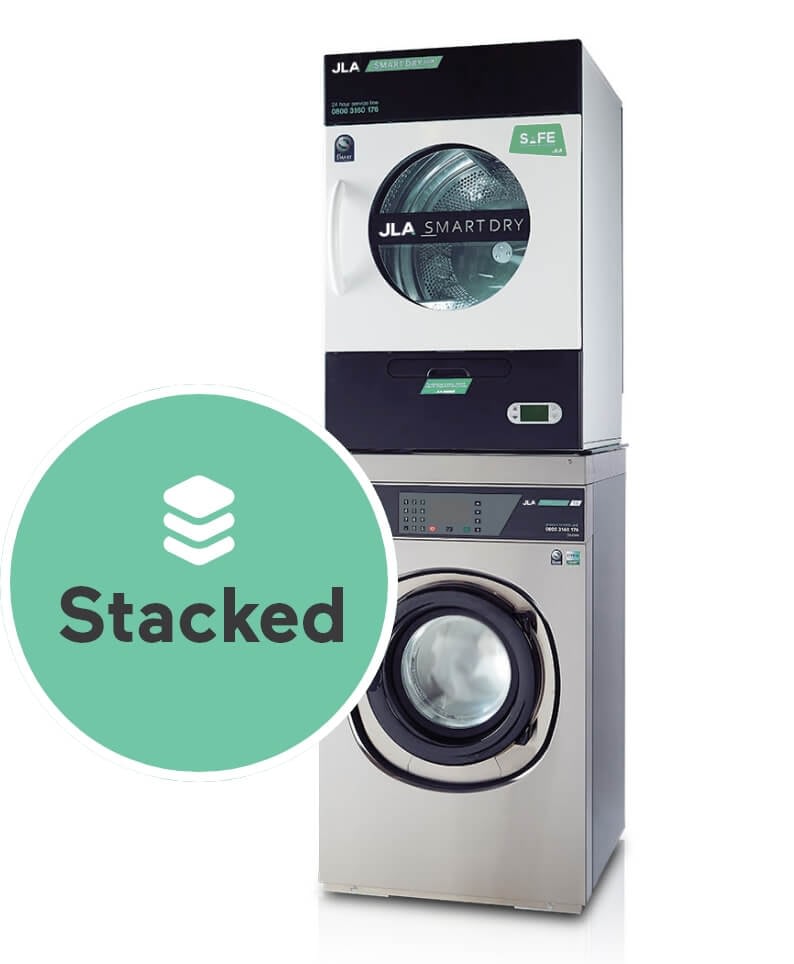

Stackable washer-dryer combinations
Our SMART washing machines are stackable and can be used below our commercial tumble dryers.

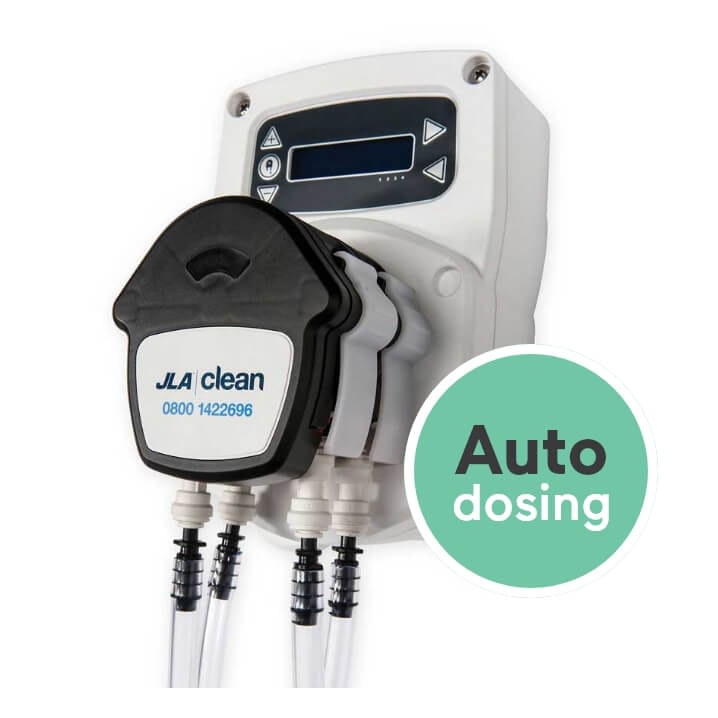

Auto-dosing
No more and no less than is needed for the best wash quality.
FAQs
Which options are available in the range of SMART washing machines?
Our range of SMART washing machines includes seven different options, including a range of free standing and rigid mount units.
What size are the SMART washing machines?
Our SMART washing machines range in capacity from 7.5kg to 18kg. This means there’s sure to be an option that suits your business.
What is the drum volume of the SMART washing machines?
Much like the size of the machines, the drum volume of our coin-operated SMART washing machines varies depending on the model chosen. Our smallest machine has a drum volume of 75 litres, while our largest machine has a drum volume of 180 litres.
What makes the JLA Smart Wash different from other models?
While every coin-operated washing machine from JLA provides best-in-class durability and long-lasting performance, our Smart Wash models are equipped with advanced features designed to boost the capabilities of your laundry facility.
For instance, smart features on board our Smart Wash range include “Waterfall” drum perforation for optimal drainage and gentle cleaning. There’s also full web connectivity for seamless monitoring, so you can easily view and retrieve wash data for improved auditing.
Are commercial coin-operated washing machines cost-effective?
Absolutely. Each commercial coin-operated washing machine from JLA is designed to provide an efficient, revenue-boosting solution for your customer-facing laundry suite. These appliances offer smart capabilities like contactless payments and expedited cycle times, so they’re an attractive proposition for customers and clients.
Of course, durability, performance, and lasting efficiency are all of the essence when it comes to long-term cost-effectiveness, too. That’s why we design and build our coin-operated washing machines to offer maximum durability and performance.
How do smart appliances enhance commercial laundry operations?
Smart washing machines and tumble dryers can prove a real game-changer in a commercial laundry room, offering enhancements in several key areas. That includes:
Improved monitoring and auditing. With smart connectivity, you can oversee your appliances in real-time, while accessing historic cycle data that can help identify cost-saving opportunities.
Dynamic cycle adjustment: Smart washing machines and dryers feature clever technologies that allow them to monitor moisture and temperature, before making dynamic adjustments that could help speed up cycle times and save energy.
Smart payment monitoring: With intelligent payment monitoring, you can oversee the revenue generation of each machine from afar, including both cash and cashless transactions.
What is the JLA Smart Wash 40 price?
The cost of the JLA Smart Wash 40 varies depending on your current laundry room setup and the specific model you require. Please contact JLA for a bespoke quote.
