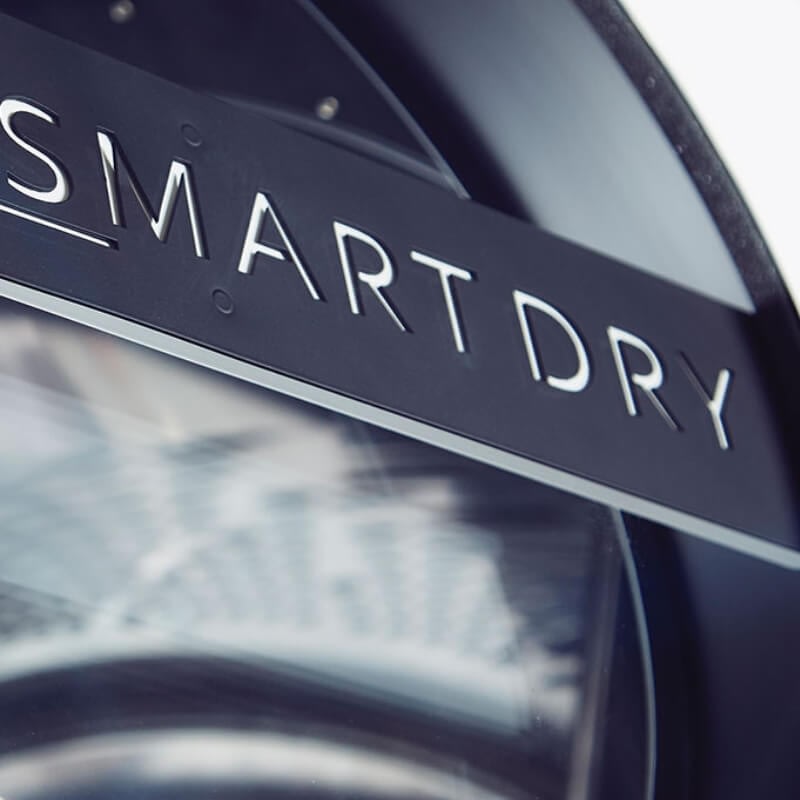

Coin-Operated JLA SMART Tumble Dryers
16kg-36kg capacity
Stackable
Now available with a range of innovations that are designed to cut operating costs and reduce drying times, our coin-operated SMART tumble dryers continue to set the benchmark for performance.
In designing our coin-operated JLA SMART tumble dryers, we have continued to push through new boundaries while also enhancing proven features that have served tens of thousands of our customers well in the past.
Specification
JLA SD35
JLA SD50
JLA SD3535
JLA SD4545
JLA SD35
| Capacity | kg/lb  | 16/35  |
| Height | mm | 1725 |
| Width   | mm | 810 |
| Depth | mm | 1140 |
| Depth (inc door)Â Â | mm | 1889 |
| Net weight (gas/elec) |
kg | 250.4 |
| Drum volume | m3/ltr | 0.34/340 |
| Door opening | mm ø | 546 |
| Heating | Gas/Elec | |
| Electrics – gas model | Volt/ph/amp | 230/1/13 |
| Electrics – elec model  | Volt/ph/amp     | 400/3/25 |
| Electrics – steam model | Volt/ph/amp | 230/1/13 |
| Power – electric model | kw | 13.6 |
| No. of water connections | cold | 1 |
| Gas rating | kw (Btu/hr) | 20.5 (70,000) |
| Steam rating | kg/hr (lb/hr) | 43.9 (96.6) |
| Airflow  | m3/min (ft3/min) | 9.63 (340) |
| Exhaust | mm ø (in ø) | 152 (6) |
| Ventilation/make-up air   | m2 (in2) | 0.045 (70) |
| Air connection – steam only | “BSP | 1/8 |
| Air connection pressure – steam only | psi | 80 |
| SAFE system (manual) | Y | |
| SAFE system (coin-op) (optional) | Gas/Steam only |
JLA SD50
| Capacity | kg/lb  | 23/50 |
| Height | mm | 1871 |
| Width   | mm | 876  |
| Depth | mm | 1300 |
| Depth (inc door)Â Â | mm | 2118Â |
| Net weight (gas/elec) |
kg | 297.1 |
| Drum volume | m3/ltr | 0.52/518 |
| Door opening | mm ø | 686 |
| Heating | Gas/Steam/Elec | |
| Electrics – gas model | Volt/ph/amp | 230/1/13 |
| Electrics – elec model  | Volt/ph/amp     | 400/3/40 |
| Electrics – steam model | Volt/ph/amp | 230/1/13 |
| Power – electric model | kw | 22 |
| No. of water connections | cold | 1 |
| Gas rating | kw (Btu/hr) | 35.2 (120,000) |
| Steam rating | kg/hr (lb/hr) | 62.7 (138) |
| Airflow  | m3/min (ft3/min) | 23.36 (825) |
| Exhaust | mm ø (in ø) | 203 (8) |
| Ventilation/make-up air   | m2 (in2) | 0.077 (120) |
| Air connection – steam only | “BSP | 1/8 |
| Air connection pressure – steam only | psi | 80 |
| SAFE system (manual) | Y | |
| SAFE system (coin-op) (optional) | 0.121 (188) Total |
JLA SD3535
| Capacity | kg/lb | (2x) 14/30 |
| Height | mm | 1988 |
| Width   | mm | 756 |
| Depth | mm | 1114 |
| Depth (inc door)Â Â | mm | 1781 |
| Net weight (gas/elec) |
kg | 359.7 |
| Drum volume | m3/ltr | (2x) 0.29/286 |
| Door opening | mm ø | 546 |
| Heating | Gas/Elec | |
| Electrics – gas model | Volt/ph/amp | 230/1/13 |
| Electrics – elec model  | Volt/ph/amp     | (2x) 400/3/25 |
| Electrics – steam model | Volt/ph/amp | n/a |
| Power – electric model | kw | 2 x 15kw |
| No. of water connections | cold | 1 |
| Gas rating | kw (Btu/hr) | 19.92 (68,000) per pocket |
| Steam rating | kg/hr (lb/hr) | n/a |
| Airflow  | m3/min (ft3/min) | 9.43 (333) per pocket |
| Exhaust | mm ø (in ø) | 2×152 (6) |
| Ventilation/make-up air   | m2 (in2) | 0.093 (144) Total |
| Air connection – steam only | “BSP | 1/8 |
| Air connection pressure – steam only | psi | 80 |
| SAFE system (manual) | Y Gas only |
|
| SAFE system (coin-op) (optional) | Gas only |
JLA SD4545
| Capacity | kg/lb | (2x) 20/45 |
| Height | mm | 2058 |
| Width   | mm | 870 |
| Depth | mm | 1353 |
| Depth (inc door)Â Â | mm | 2156 |
| Net weight (gas/elec) |
kg | 392 |
| Drum volume | m3/ltr | (2x) 0.41/413 |
| Door opening | mm ø | 686 |
| Heating | Gas | |
| Electrics – gas model | Volt/ph/amp | 230/1/13 |
| Electrics – elec model  | Volt/ph/amp     | n/a |
| Electrics – steam model | Volt/ph/amp | n/a |
| Power – electric model | kw | n/a |
| No. of water connections | cold | 1 |
| Gas rating | kw (Btu/hr) | 27.5 (94,000) per pocket |
| Steam rating | kg/hr (lb/hr) | n/a |
| Airflow  | m3/min (ft3/min) | 14.87 (525) per pocket |
| Exhaust | mm ø (in ø) | 2×203 (8) |
| Ventilation/make-up air   | m2 (in2) | 0.121 (188) Total |
| Air connection – steam only | “BSP | n/a |
| Air connection pressure – steam only | psi | n/a |
| SAFE system (manual) | Y Gas only |
|
| SAFE system (coin-op) (optional) | Gas only |
All specifications subject to change without notice.
01
Vari-spin
Our SMART machines are programmed to know how long a load takes to dry. This means you can reduce waste and save money on utility bills.
02
Eco-flow
Warm air is passed through the dryer from the top and rear of the drum to enhance heat exchange. This ultimately speeds up the drying time and maximises the amount of laundry you can dry each hour.
03
Two-phase heating
Our dryers are built in such a way that ambient air is drawn over the machine’s stove and ‘prewarmed’ before going on to be heated further in the flame chamber itself.
Features you'll love
Drum support rollers
The machine’s two-point roller support takes the stress away from key component parts. This leads to smoother drum rotation and helps to extend the life of your machine. Plus, noise is also reduced during the cycle and garment life is extended.
Reversing cylinder
In auto-dry mode, easy-to-use controls allow you to select different dryness levels depending on whether ‘cupboard dry’ is preferred or whether ‘damp dry’ is required to aid ironing.
Self-cleaning lint filter
Our reversing tumbler (available in single phase for the first time) keeps everything moving inside the drum and allows your items to drop and dry more quickly. It also prevents ‘roping’ and ‘balling’ when drying large items.
Performance, efficiency and reliability
We know that you need your laundry machines to perform well and cope with constant daily demands. But, we also recognise the need for energy savings and reduced running costs.
That’s why all coin-operated JLA SMART tumble dryers must meet our exacting standards in the areas that matter most to you: performance, efficiency and reliability.
Evolution = efficiency
Alongside new advancements in the drying process, JLA machines work with the bigger picture in mind and bring together a clever combination of different innovations from the past as well as the present, along with superior construction that you can rely upon well into the future.
Also available with...
SAFE system
Our patented SAFE system constantly monitors the dryer drum to give you non-stop protection against the outbreak of fire.
Two SMART sensors detect any significant change in temperature and activate a sophisticated water vapour mechanism that soaks laundry to extinguish flames in seconds. No flooding ever takes place, so the risk of staff injury or damage to your property is eliminated – as are the associated risks of large scale evacuation.
Stackable washer-dryer combinations
Our coin-operated SMART tumble dryers can be used above our SMART washing machines.
If you need extra drying capacity, then you can also put two dryers together in an upright combination – saving time and space in the process.
FAQs
Which products are available in the range of coin-operated JLA SMART tumble dryers?
The range of coin-operated JLA SMART tumble dryers contains a number of great options, including the JLA SD50, the JLA SD35, the JLA SD35 Stacked and the JLA SD45 Stacked.
How are the coin-operated JLA SMART tumble dryers heated?
An excellent selection of gas and steam models are available.
Are the coin-operated JLA SMART tumble dryers available with Total Care?
Yes, Total Care is available on all our coin-operated JLA SMART tumble dryers. Please contact our laundry experts to learn more.
