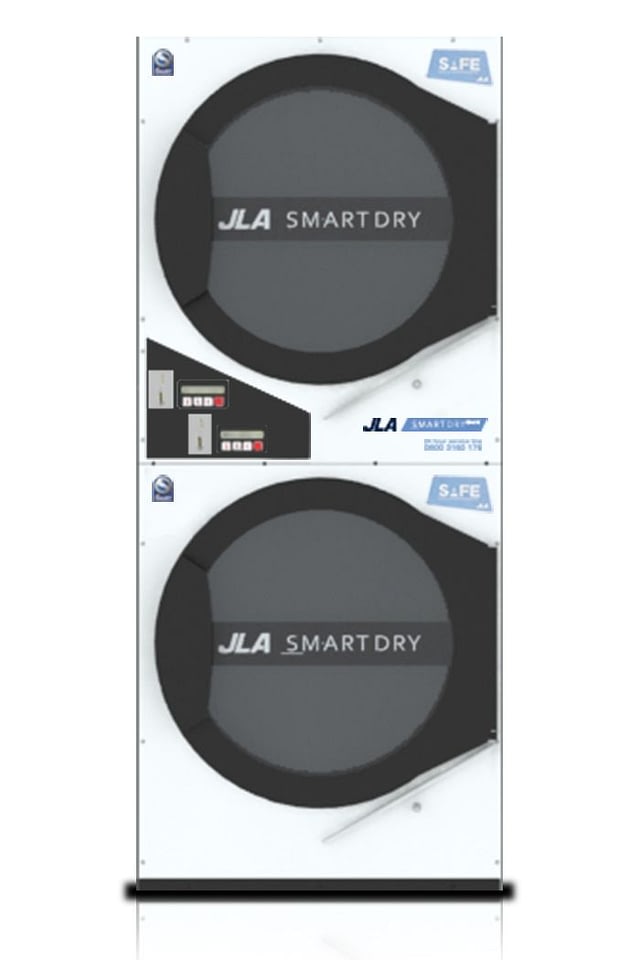

JLA SD4545 SMART Stack
The JLA SD4545 SMART Dry stacked dryer combines two 20kg/45lb dryers to give you double the throughput – and double the benefits of our innovative SMART laundry technology, which will help you save on your utility costs. Manual, gas models will also benefit from the peace of mind offered by our ground-breaking S.A.F.E. dryer fire extinguishing system, which uses sensors to detect fires and put them out with water vapour before they start.
| Control: Microprocessor | Net Weight (kg): 392 |
| Capacity (Kg/lb): 2 x 20/45 | Dimensions HxWxD (mm): 2058x870x2156 |
| Door Opening (mm Ø): 686 | Drum Volume (m3/ltr): 2 x 0.4134/413.4 |
| Freestanding: Yes | No. of Water Connections (cold): 1 |
| Air Connection (“BSP): N/A | Air Connection Pressure (only steam) (psi): N/A |
| Connection Size (“BSP Supply/Ret): – | Electrics – Elec Model (Volt/ph/Amp): N/A |
| Electrics – Gas Model (Volt/ph/Amp): 230/1/13 | Electrics – Steam Model (Volt/ph/Amp): N/A |
| Gas Rating kW (Btu/hr): 27.5 (94,000) per pocket | Size of Water Connection (“BSP): – |
| Steam Rating kg/hr (lb/hr): N/A | Connection Size (“BSP): – |
| Exhaust Air (mm): 2 x 203 (8) | Heating: Gas/Electric |
| Ventilation/Make-Up Air (m2/in2): 0.121 (188) Total | Airflow m3 (ft3/min): 14.87 (525) per pocket |
| Power (kW): N/A | S.A.F.E (optional): Gas only |
