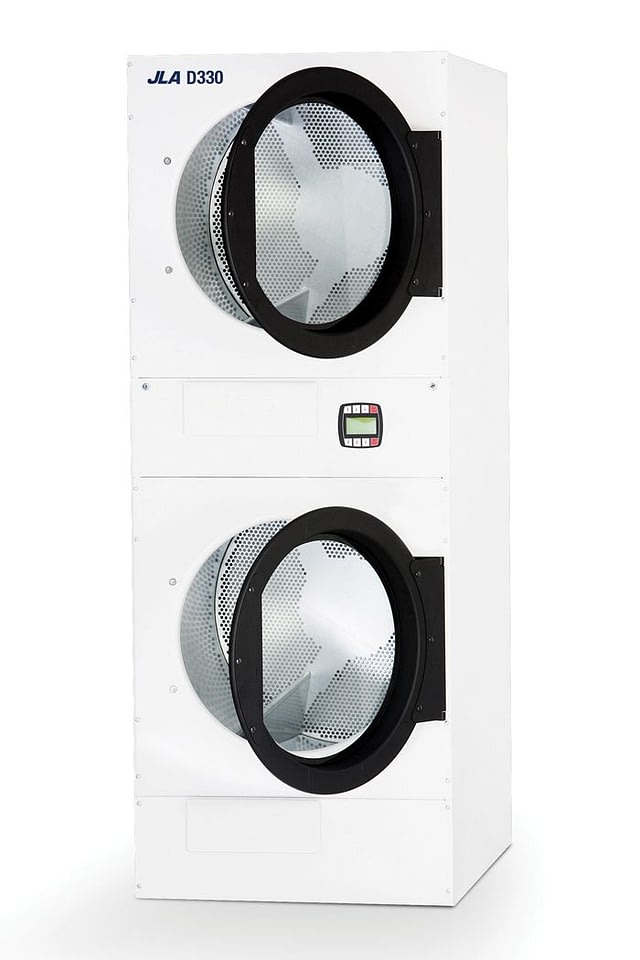

JLA D330 Stack
The JLA D330 stacked dryer doubles your throughput, without taking up additional space in your laundry room. Capable of handling bulky items like duvets with ease and programmed to be energy efficient, you’ll wonder how you ever did laundry without it.
The D330 model, available in both gas and electric models, has the option to feature our innovative S.A.F.E. dryer fire extinguishing system for the ultimate peace of mind in your laundry room.
| Control: Microprocessor | Capacity (Kg/lb): 2×13.5/30 |
| Dimensions HxWxD (mm): 1988x758x1118mm | Door Opening (mm Ø): 546 |
| Freestanding: Yes | Connection Size (“BSP Supply/Ret): 1 / 3/4 |
| Electrics – Elec Model (Volt/ph/Amp): 2x 415/3/25 | Electrics – Gas Model (Volt/ph/Amp): 230/1/20 |
| Electrics – Steam Model (Volt/ph/Amp): 230/1/13 | Exhaust (mm Ø): 2×150 |
| Gas Rating kW (Btu/hr): 2×20 (68,000) Total (136,000) | Steam Rating kg/hr (lb/hr): 45/100 |
| Connection Size (“BSP): “2×1/2 connection via 3/4 flexible amoured hose” | Heating: Gas |
| Ventilation/Make-Up Air (m2/in2): 0.087 (136) | S.A.F.E (optional): Gas only |
| Compressed Air Rating m3 (ft3/hr): 9.5 (333) | Drum Volume (per basket) (m3): 0.286 |
| Net Weight (gas/electric) (Kg): 360 | Power (Electric) (per pocket) (kW): 15 |
| Net Weight Steam (Kg): 380 |
