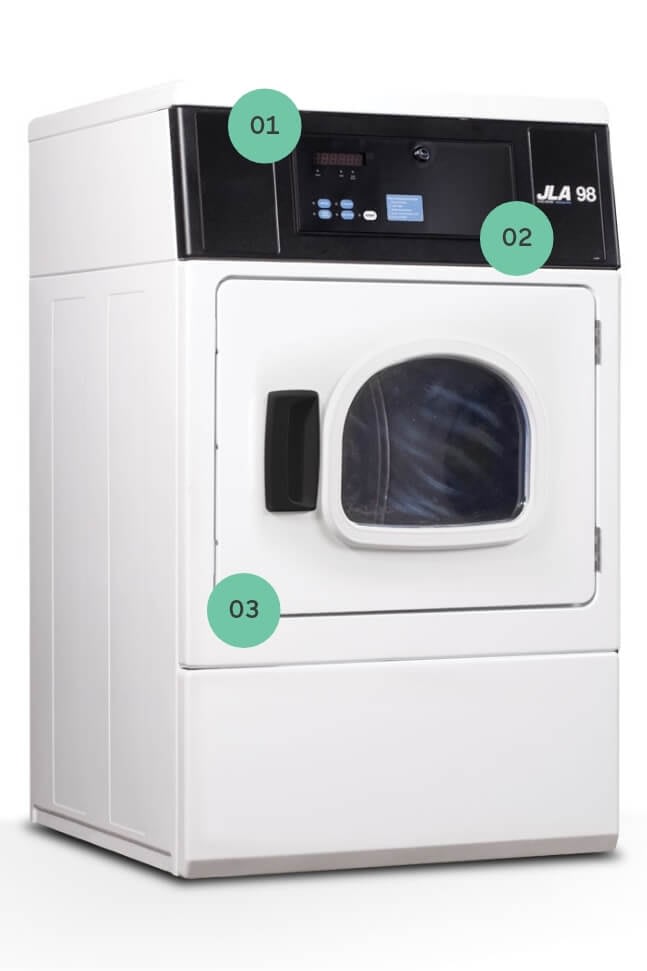

JLA 98 Tumble Dryer
Our easy-to-use JLA 98 tumble dryers have been designed with efficiency in mind.
Supreme efficiency
Fast-dry cycles ensure low running costs.
Tilted control panels
The machine’s angled control panel makes it easy to select cycles.
Pre-programmed cycles
For ease of selection and simple operation.
Easy cleaning
The robust lint filter also ensures maximum performance with every cycle.
Features you'll love
Lifetime data history
Fully updatable firmware
Available in three options
Explore the key benefits of the JLA 98 tumble dryer
How can the JLA 98 help you improve efficiency in your laundry room?
There are lots of dryers for sale, but how do you choose the right one for your operation? The guide explains why the JLA 98 was designed and built with efficiency in mind and is packed full of features for everyday multi-load use.
Fast and energy-efficient cycles
Our new JLA 98 tumble dryer offers fast, energy-efficient cycles that are perfect for busy laundries.
On top of this, the dryer is simple to use thanks to its enhanced control panel. Wide door opening makes loading easier and faster for busy laundry staff, and four different temperature settings mean you can adapt the drying programme to suit your needs.
Choose a model that suits you
Our JLA 98 tumble dryers are available with a great range of additional options.
Available in coin operated, gas and electric. So you can select a model that fits your requirements.
Also available with...
Stackable washer-dryer combinations
The stylish JLA 98 tumble dryer cabinet has been designed to offer performance on every level.
Alongside new features and technical improvements, our stackable solution allows you to double up on efficiency.
The machine sits perfectly on top of our JLA 98 washing machine but, if you need extra drying capacity, you can also put two dryers together in an upright combination.

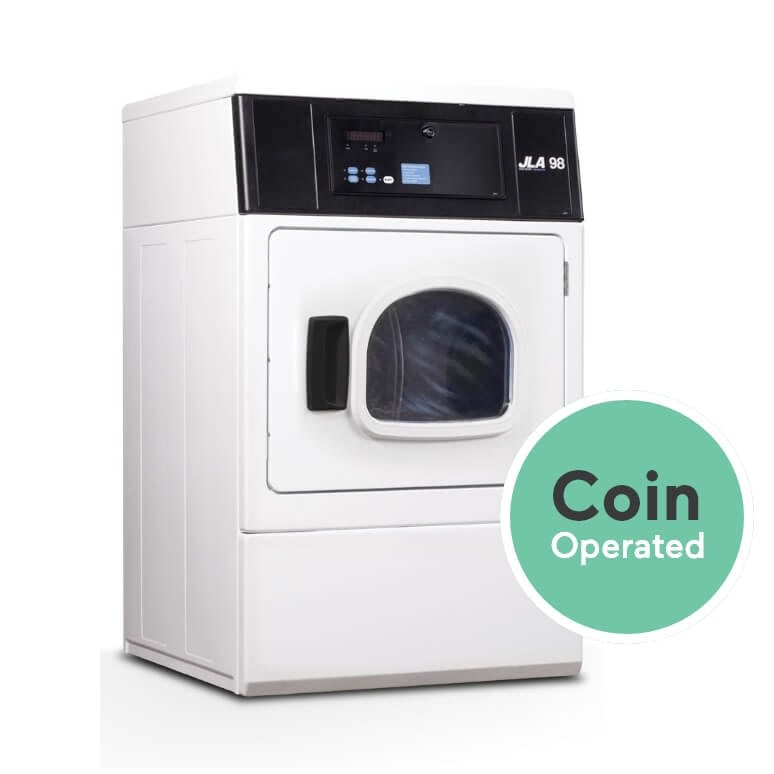

JLA 98 coin-op systems
The JLA 98 dryer is also available with our robust coin-op mechanism.
These machines benefit from low running costs and more-efficient-than-ever performance.
Extra-large integrated coin boxes reduce the need to empty as frequently, meaning less hassle for business owners. Plus, a full auditing of cycle counts and monies received plus a time of day pricing modifier ensure that revenue is always maximised.
Specification
| Capacity (kg) | 9.5 |
| Height (mm) | 1121 |
| Width (mm) | 683 |
| Depth (mm) | 711 |
| Net weight (kg) | 68 |
| Drum volume (litres) | 201 |
| G Force | – |
| Microprocessor control | Yes |
| Free standing | Yes |
| No. of Water Connections (cold/hot) | – |
| Water Connection Size (“BSP) | – |
| Exhaust Diameter (mm/in) | 102/4” |
| Make-Up Air (m2/in2) | 0.013/20 |
| Airflow (m3/min – ft3/min) | 5.1/180 |
| Drain Connection: Pump (standpipe mm/in) | – |
| Drain Valve (mm/in) | – |
| Gas Rating (kW/BTU) | 5.9/20,000 |
| Gas Connection Size (“BSP) | 3/8 |
| Electrics | |
| 4.8kw Self Heat Washer (Volt/ph/Amp) | – |
| Self Heat Washer (Volt/ph/Amp) | – |
| Electric Heat Dryer (Volt/ph/Amp) | 230/1/25 |
| Gas Dryer (Volt/ph/Amp) | 230/1/10 |
| Optional Electrics | |
| 2.4kw Self Heat Washer (Volt/1ph/Amp) | – |
| 4.8kw Self Heat Washer (Volt/3ph/Amp) | 400/3/10 |
| Capacity (kg) | 9.5/9.5 |
| Height (mm) | 1994 |
| Width (mm) | 683 |
| Depth (mm) | 744 |
| Net weight (kg) | 177 |
| Drum volume (litres) | 97/201 |
| G Force | 440 |
| Microprocessor control | Yes |
| Free standing | Yes |
| No. of Water Connections (cold/hot) | 1/1 |
| Water Connection Size (“BSP) | 3/4 |
| Exhaust Diameter (mm/in) | 102/4” |
| Make-Up Air (m2/in2) | 0.013/20 |
| Airflow (m3/min – ft3/min) | 5.1/180 |
| Drain Connection: Pump (standpipe mm/in) | 50mm/2” |
| Drain Valve (mm/in) | 50mm/2” |
| Gas Rating (kW/BTU) | 5.9/20,000 |
| Gas Connection Size (“BSP) | 3/8 |
| Electrics | |
| 4.8kw Self Heat Washer (Volt/ph/Amp) | 230/1/10 |
| Self Heat Washer (Volt/ph/Amp) | 230/1/25 |
| Electric Heat Dryer (Volt/ph/Amp) | 230/1/25 |
| Gas Dryer (Volt/ph/Amp) | 230/1/10 |
| Optional Electrics | |
| 2.4kw Self Heat Washer (Volt/1ph/Amp) | 230/1/13 |
| 4.8kw Self Heat Washer (Volt/3ph/Amp) | – |
| Capacity (kg) | 9.5 |
| Height (mm) | 1994 |
| Width (mm) | 683 |
| Depth (mm) | 711 |
| Net weight (kg) | 125 |
| Drum volume (litres) | 201/201 |
| G Force | – |
| Microprocessor control | Yes |
| Free standing | Yes |
| No. of Water Connections (cold/hot) | – |
| Water Connection Size (“BSP) | – |
| Exhaust Diameter (mm/in) | 2 x 102/4” |
| Make-Up Air (m2/in2) | 0.026/40 |
| Airflow (m3/min – ft3/min) | 2x 5.1/180 |
| Drain Connection: Pump (standpipe mm/in) | – |
| Drain Valve (mm/in) | – |
| Gas Rating (kW/BTU) | 2 x 5.9/20,000 |
| Gas Connection Size (“BSP) | 2 x 3/8 |
| Electrics | |
| 4.8kw Self Heat Washer (Volt/ph/Amp) | – |
| Self Heat Washer (Volt/ph/Amp) | – |
| Electric Heat Dryer (Volt/ph/Amp) | 2 x 230/1/25 |
| Gas Dryer (Volt/ph/Amp) | 2 x 230/1/10 |
| Optional Electrics | |
| 2.4kw Self Heat Washer (Volt/1ph/Amp) | – |
| 4.8kw Self Heat Washer (Volt/3ph/Amp) | 400/3/10 |
FAQs
Which sectors is the JLA 98 dryer appropriate for?
It is suitable for housing, schools, intimate restaurants and small care homes.
How big is the JLA 98 dryer?
The JLA 98 dryer has a capacity of 9.5kg and a drum volume of 201 litres. It’s ideal for every day, multi-load use and allows you to do more in less time.
Can the JLA 98 dryer be stacked?
Yes, our JLA 98 tumble dryers are stackable. They can be stacked on top of a JLA 98 commercial washing machine, or stacked as a dryer-dryer combo.
Product documentation
Total Care
A unique, all-inclusive package, specially designed for you.
- Market-leading equipment with no upfront payments, repair bills or call-out charges – ever
- Installation at no extra cost
- Guaranteed local engineer response
- 24/7/365 support from friendly advisors
- Access to myJLA, with billing, essential documents, engineer booking and support in one place
- Round-the-clock monitoring to minimise downtime – we sort issues before you know about them
- Keep an eye on your energy usage with live bill estimates and CO2 emissions
