JLA D Heavy Duty Tumble Dryers
With large and extra-large capacities available, you’ll find that bulky items such as duvets and sheets are easy to handle.
With our exclusive SAFE system, large door opening and auto-dry programmes, these dryers are packed with class-leading features that can improve efficiency and optimise results.
Specification
| Heating | Gas |
| Capacity (Kg/lb) | 40/90 |
| Height steam (mm) | n/a |
| Â Height gas (mm) | 2092 |
| Width (mm) | 1172 |
| Depth (inc door) (mm) | 1832 |
| Net Weight gas (Kg) | 494 |
| Net Weight steam (Kg) | n/a |
| Drum Volume (m3) | 0.67 |
| Door Opening (mm Ø) | 797 |
| Control (Microprocessor) | Phase 7 |
| Electrics (Volt/ph/Amp) | 415/3/15 |
| No. of Water Connections (cold) | 1 |
| Gas Rating kW (Btu/hr) | 102.6(350,000) |
| Steam Rating Kg (lb/hr) | n/a |
| Compressed Air Rating m3 (ft3/hr) | 0.07 (2.5) |
| Airflow m3 (ft3/min) | 64.2 (2268) |
| Exhaust (mm Ø) | Gas – 400 |
| Heating | Gas/Steam |
| Capacity (Kg/lb) | 55/120 |
| Height steam (mm) | 2115 (operating) |
| Â Height gas (mm) | 2223 |
| Width (mm) | 1235 |
| Depth (inc door) (mm) | 2165 |
| Net Weight gas (Kg) | 653 |
| Net Weight steam (Kg) | 784 |
| Drum Volume (m3) | 1.08 |
| Door Opening (mm Ø) | 797 |
| Control (Microprocessor) | Phase 7 |
| Electrics (Volt/ph/Amp) | 415/3/20 |
| No. of Water Connections (cold) | 1 |
| Gas Rating kW (Btu/hr) | 121.6 (375,000) |
| Steam Rating Kg (lb/hr) | 204 (450) |
| Compressed Air Rating m3 (ft3/hr) | 0.09 (3.25) |
| Airflow m3 (ft3/min) | 76.6 (2333) |
| Exhaust (mm Ø) | Gas – 400 Steam – 450 |
| Heating | Gas/Steam |
| Capacity (Kg/lb) | 77/170 |
| Height steam (mm) | 2591 (operating) |
| Â Height gas (mm) | 2540 |
| Width (mm) | 1420 |
| Depth (inc door) (mm) | 2235 |
| Net Weight gas (Kg) | 953 |
| Net Weight steam (Kg) | 1025 |
| Drum Volume (m3) | 1.45 |
| Door Opening (mm Ø) | 797 |
| Control (Microprocessor) | Phase 7 |
| Electrics (Volt/ph/Amp) | 415/3/32 |
| No. of Water Connections (cold) | 1 |
| Gas Rating kW (Btu/hr) | 161.2 (550,000) |
| Steam Rating Kg (lb/hr) | 329 (725) |
| Compressed Air Rating m3 (ft3/hr) | 0.09 (3.25) |
| Airflow m3 (ft3/min) | 104 (3700) Gas 124 (4400) steam |
| Exhaust (mm Ø) | Gas – 450, Steam – 500 |
All specifications subject to change without notice.
One-touch operation
Thanks to six pre-programmed cycles.
Large lint filter
Teflon-coated drum
For durability and longer life.
Features you'll love
Unique roller drive system
Reversing drum
Insulated cabinets
What Makes JLA's Dryers "S.A.F.E"?
Enhancing Laundry Fire Safety
JLA’s laundry system has unique fire safety features, including S.A.F.E technology, which stands for Sensor Activated Fire Extinguishing.
This innovative system enhances laundry fire safety and can be found in their tumble dryers. Learn more about it in the video.
Choose between steam and gas
The steam damper system is standard and allows the steam coil to stay constantly charged, eliminating repeated expansion and contraction
Due to this, the performance of our JLA D heavy duty tumble dryers surpasses that of conventional dryers with steam valves that are slow to heat and cool down, as well as being less efficient and having a reduced life.
Our gas dryers utilise the power of hot surface ignition. This leads to fast ignition, maximum efficiency and reduced running costs.
Efficiency, convenience and impressive results
Pre-set programmes eliminate user error, while a permanent press cycle and variable temperature settings combine to guarantee optimum drying temperatures for all fabrics.
FAQs
Which options are available in the range of JLA D tumble dryers?

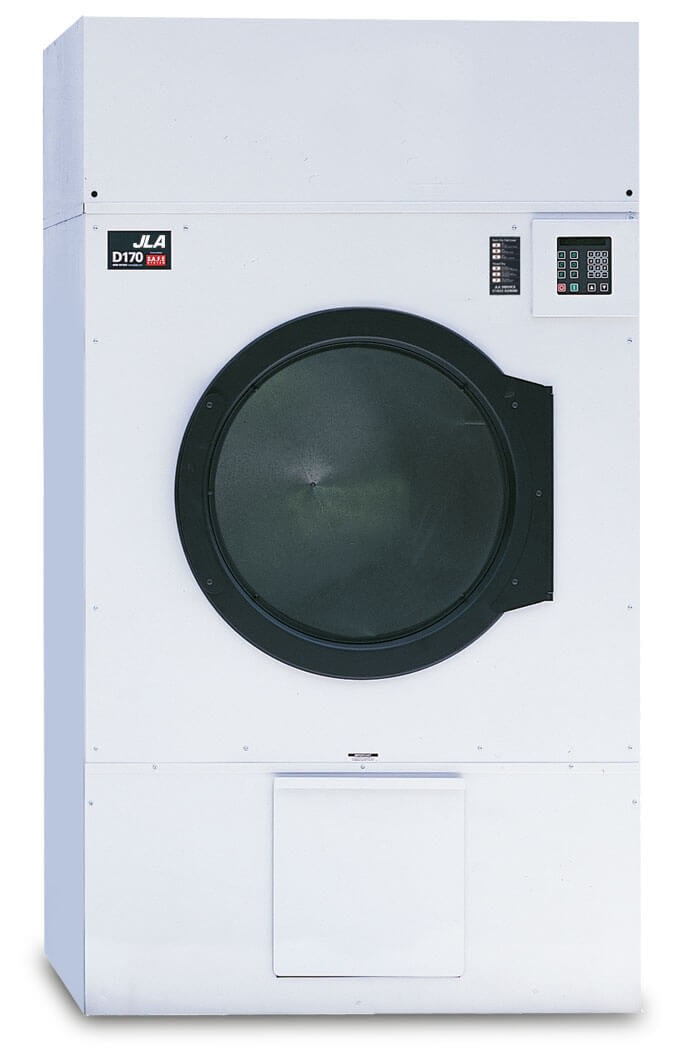

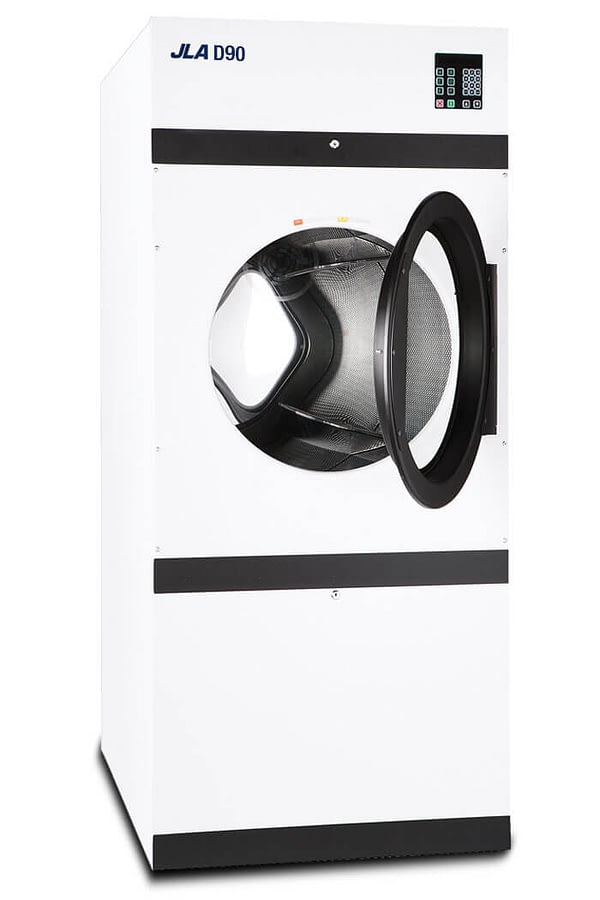

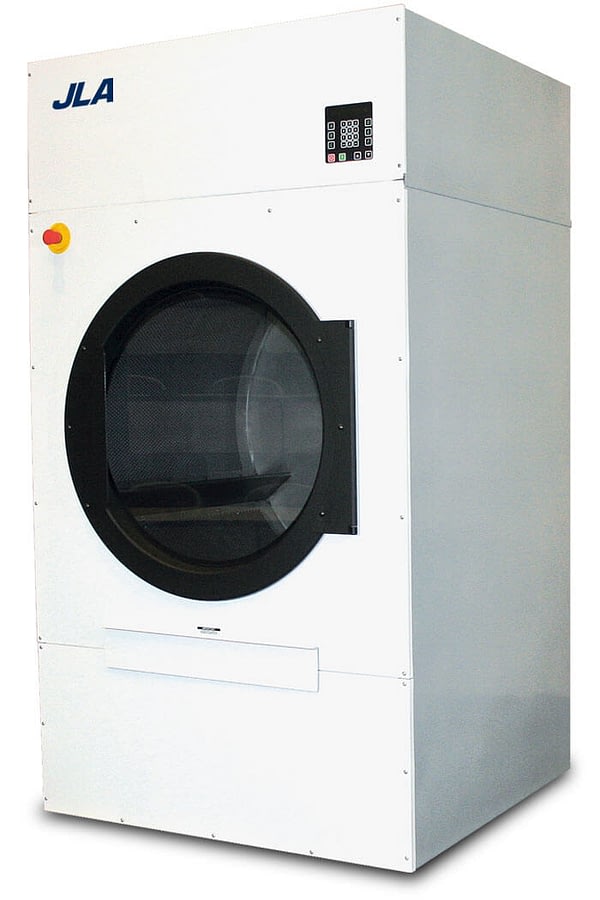

There are three options available in the range of JLA D tumble dryers. These are the JLA D90, the JLA D120 and the JLA D170.
How big are the JLA D tumble dryers?
Our tumble dryers are built to withstand even the toughest laundry environments. The JLA D90 is the smallest model in the range, but it still provides a capacity of 40kg. Meanwhile, the JLA D120 offers a drum capacity of 55kg and the JLA D170 provides a drum capacity of 77kg.
Product documentation
Total Care
A unique, all-inclusive package, specially designed for you.
- Market-leading equipment with no upfront payments, repair bills or call-out charges – ever
- Installation at no extra cost
- Guaranteed local engineer response
- 24/7/365 support from friendly advisors
- Access to myJLA, with billing, essential documents, engineer booking and support in one place
- Round-the-clock monitoring to minimise downtime – we sort issues before you know about them
- Keep an eye on your energy usage with live bill estimates and CO2 emissions
