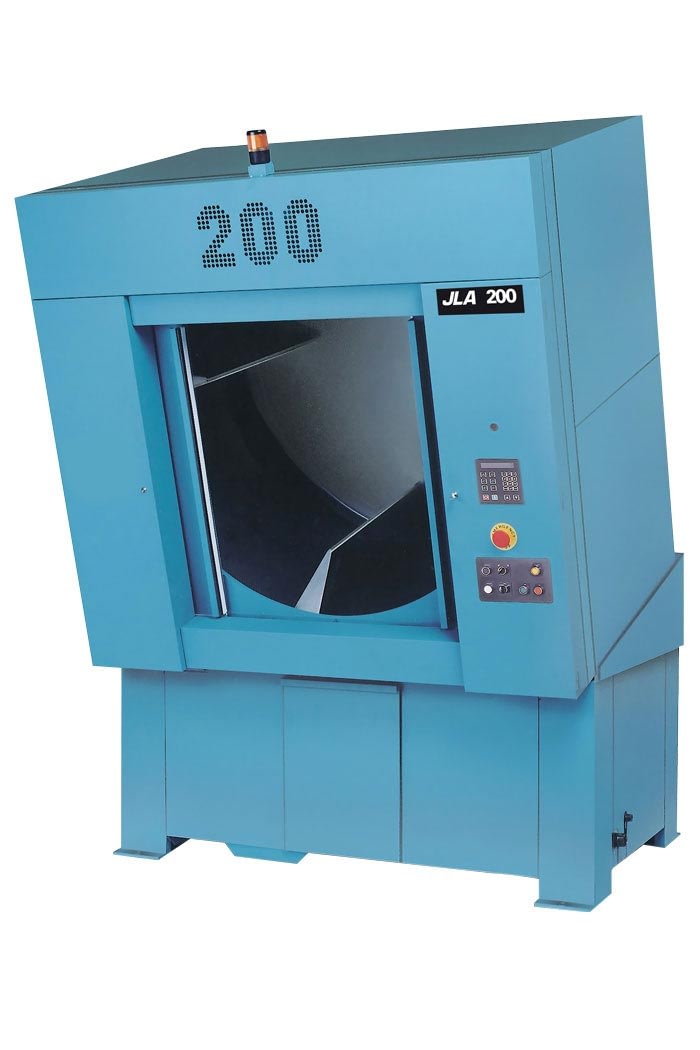

JLA D Ind Tumble Dryers
They’re also packed with features that make operation as simple as possible. These features include sliding doors and one or two-way tilt options that make it simple for your staff members to load and unload bulky items like duvets and sheets.
Specification
| Height Non-Tilt Gas (mm) | 2902 |
| Height Non-Tilt Steam (mm) | 2957 (3239 when steam is operating) |
| Height Tilt Option Gas (mm) | 2902 (2978 when tilted) |
| Height Tilt Option Steam (mm) | 2956 (3173 when tilted) |
| (32961 when steam is operating) | |
| Width Non-Tilt (mm) | 1917 |
| Width Tilt Option (mm) | 1943 |
| Depth Non-Tilt (mm) | 1562 |
| Depth Tilt Option (mm) | 1670 |
| (2217 gas, 2172 steam when tilted) | |
| Net Weight Gas (Kg) | 1529 |
| Net Weight Steam (Kg) | 1644 |
| Drum Volume (m3/ltr) | 2.11/2110 |
| Sliding Door Opening Width (mm) | 933 |
| Control (Microprocessor) | Phase 7 |
| Heating | Gas/Steam |
| Electrics Gas Heated (Volt/ph/Amp) | 0400/3/20 |
| No. of Water Connections (cold) | 1 |
| Size (“BSP) | 3/4 |
| Gas Rating kW (Btu/hr) | 189 (750,000) |
| Size (“BSP) | 1 / 1/4 |
| Steam Rating Kg (lb/hr) | 405 (890) |
| Size Supply & Return (“BSP) | 2 1/2 |
| Compressed Air Non-Tilt m3 (ft3/hr) | 0.12 (4.25) |
| Compressed Air Tilt Option m3 (ft3/hr) | 0.2 (7.0) |
| Pressure (psi) | 90 |
| Size (“BSP) | 3/8 |
| Airflow m3 (ft3/min) | 150 (5300) gas, 184 (6500) steam |
| Exhaust (mm Ø) | 508 |
| Ventilation/Make-Up Air m2 (in2) | 0.42 (650) gas, 0.5 (780) steam |
| Maximum Capacity (Dry Weight) | 310 lb (140.61 kg) |
| Tumbler Diameter | 62-1/2” (158.75 cm) |
| Tumbler Depth | 60” (152.40 cm) |
| Tumbler Volume | 106.50 cu ft (3015.744 L) |
| Tumbler/Drive Motor | 5 hp (3.73 kW) |
| Door Opening* | 36-3/4” x 43” (93.35 cm x 109.22 cm) |
| Door Sill Height – Level | 36-1/2” (92.71 cm) |
| Compressed Air Volume | 11 cfh (0.31 cmh) |
| Compressed Air Connection** | 3/8” F.N.P.T. / 3/8” Quick Connection |
| Exhaust Connection (Diameter) | 24” (60.96 cm) |
| Water Connection*** | 3/4” F.N.P.T. |
| Gas | |
| Voltage Available | 208-575v 3ø 3,4w 50/60 Hz |
| Blower/Fan Motor (Rear / Side Exhaust) | 15 hp / 25 hp (11.19 kW / 18.64 kW) |
| Approx. Net Weight | 5,000 lb (2,267.96 kg) |
| Approx. Shipping Weight | 5,310 lb (2,408.58 kg) |
| Heat Input | 1,125,000 Btu/hr (283,495 kcal/hr) |
| Airflow 50 Hz / 60 Hz | 6,500 cfm (184.06 cmm) |
| Inlet Pipe Connection | (2) 1-1/2 M.N.P.T. / 1-1/2” M.N.P.T. |
| Steam | |
| Voltage Available | 208-575v 3ø 3,4w 50/60 Hz |
| Blower/Fan Motor | 25 hp (18.64 kW) |
| Approx. Net Weight | 5,425 lb (2,460.74 kg) |
| Approx. Shipping Weight | 5,735 lb (2,601.35 kg) |
| Airflow 50 Hz/60 Hz | 8,500 cfm (240.69 cmm) |
| Steam Consumption | 1,153 lb/hr (522.99 kg/hr) |
| Operating Steam Pressure | 80 psi (± 10 psi) (5.52 bar (± 0.69 bar) |
| Boiler Horsepower (Normal Load) | 35 Bhp |
| Supply Connection | 2” M.N.P.T. |
| Return Connection | 2” M.N.P.T. (Non-Tilt) / 1-1/4” M.N.P.T. (Tilt) |
All specifications subject to change without notice.

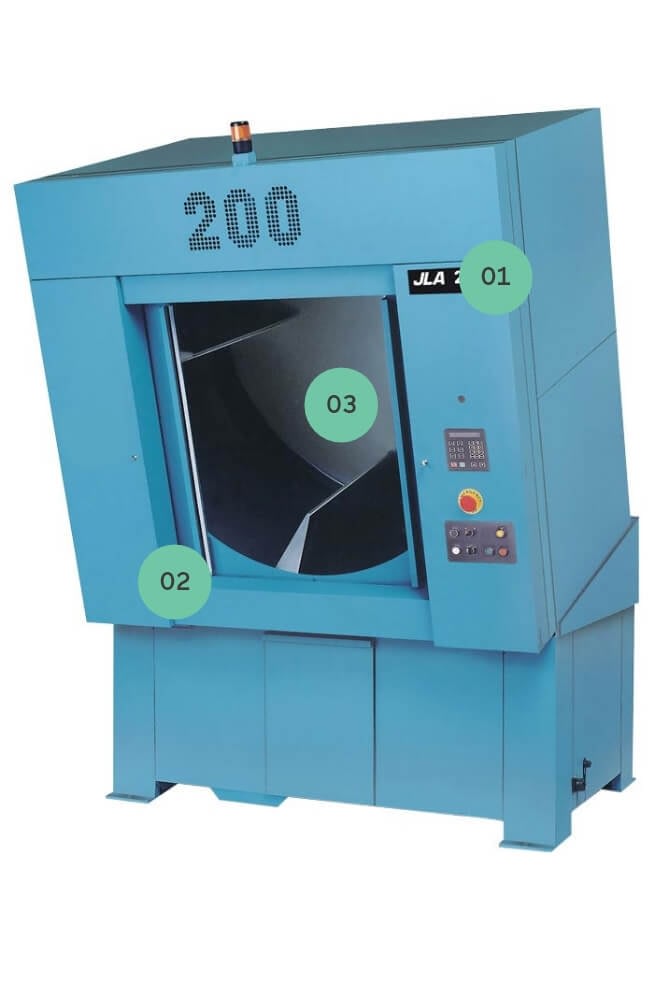

SAFE system
Our SAFE system eliminates the risk of fire and prevents damage occurring to your property.
Large door opening
So even the largest and bulkiest items can be removed quickly and easily.
Teflon-coated drum
For durability and longer life. Plus, the drum also incorporates removable perforated basket panels for easy cleaning.
Features you'll love
Unique roller drive system
Insulated cabinets
Tilting option
What Makes JLA's Industrial Dryers "S.A.F.E"?
Enhancing Industrial Laundry Fire Safety
JLA’s industrial laundry system has unique fire safety features, including S.A.F.E technology, which stands for Sensor Activated Fire Extinguishing.
This innovative system enhances industrial laundry fire safety and can be found in their industrial tumble dryers. Learn more about it in the video.
Choose between steam and gas
The steam damper system comes as standard. This allows the steam coil to stay constantly charged. Due to this, the performance of our JLA D industrial tumble dryers surpasses that of conventional dryers with steam valves that are slow to heat and cool down.
Meanwhile, our gas JLA D industrial tumble dryers utilise the power of hot surface ignition. Due to this, efficiency is maximised and running costs are reduced.
Efficient and convenient
Pre-set programmes eliminate user error, while a permanent press cycle and variable temperature settings combine to guarantee optimum drying temperatures for all fabrics.
FAQs
Which options are available in the range of JLA D industrial tumble dryers?
How big are the JLA D industrial tumble dryers?
They are built to withstand even the toughest laundry environments. The JLA D200 is vast and has a drum volume of 2,110 litres.
Product documentation
Total Care
A unique, all-inclusive package, specially designed for you.
- Market-leading equipment with no upfront payments, repair bills or call-out charges – ever
- Installation at no extra cost
- Guaranteed local engineer response
- 24/7/365 support from friendly advisors
- Access to myJLA, with billing, essential documents, engineer booking and support in one place
- Round-the-clock monitoring to minimise downtime – we sort issues before you know about them
- Keep an eye on your energy usage with live bill estimates and CO2 emissions
