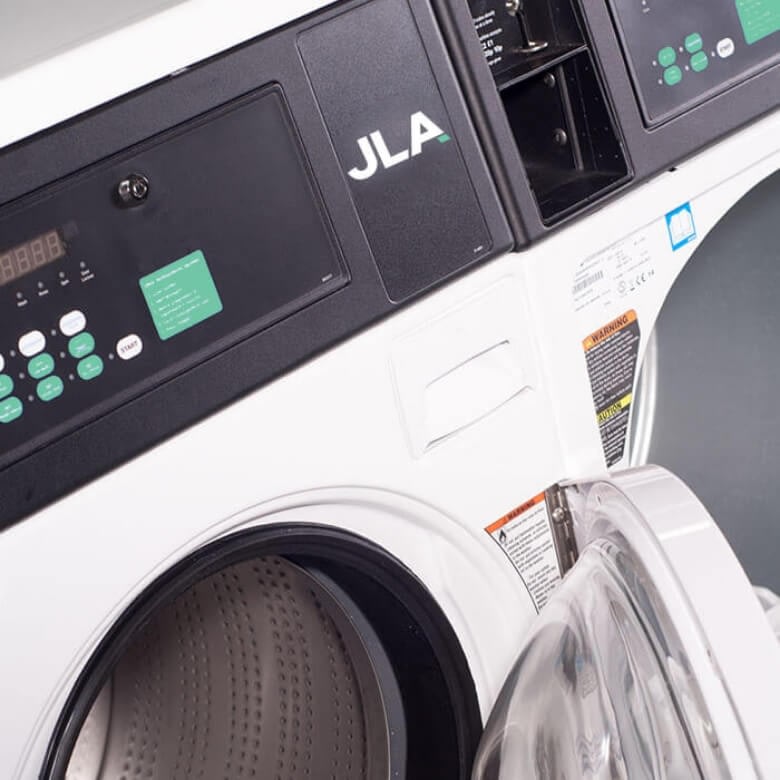

Coin-Operated JLA 98 Tumble Dryer
Loaded with all the style and reliability you would expect from a JLA dryer, these machines have been designed with efficiency in mind.
Specification
| Capacity (kg) | 9.5 |
| Height (mm) | 1121 |
| Width (mm) | 683 |
| Depth (mm) | 711 |
| Net weight (kg) | 68 |
| Drum volume (litres) | 201 |
| G Force | – |
| Microprocessor control | Yes |
| Free standing | Yes |
| No. of Water Connections (cold/hot) | – |
| Water Connection Size (“BSP) | – |
| Exhaust Diameter (mm/in) | 102/4” |
| Make-Up Air (m2/in2) | 0.013/20 |
| Airflow (m3/min – ft3/min) | 5.1/180 |
| Drain Connection: Pump (standpipe mm/in) | – |
| Drain Valve (mm/in) | – |
| Gas Rating (kW/BTU) | 5.9/20,000 |
| Gas Connection Size (“BSP) | 3/8 |
| Electrics | |
| 4.8kw Self Heat Washer (Volt/ph/Amp) | – |
| Self Heat Washer (Volt/ph/Amp) | – |
| Electric Heat Dryer (Volt/ph/Amp) | 230/1/25 |
| Gas Dryer (Volt/ph/Amp) | 230/1/10 |
| Optional Electrics | |
| 2.4kw Self Heat Washer (Volt/1ph/Amp) | – |
| 4.8kw Self Heat Washer (Volt/3ph/Amp) | 400/3/10 |
| Capacity (kg) | 9.5/9.5 |
| Height (mm) | 1994 |
| Width (mm) | 683 |
| Depth (mm) | 744 |
| Net weight (kg) | 177 |
| Drum volume (litres) | 97/201 |
| G Force | 440 |
| Microprocessor control | Yes |
| Free standing | Yes |
| No. of Water Connections (cold/hot) | 1/1 |
| Water Connection Size (“BSP) | 3/4 |
| Exhaust Diameter (mm/in) | 102/4” |
| Make-Up Air (m2/in2) | 0.013/20 |
| Airflow (m3/min – ft3/min) | 5.1/180 |
| Drain Connection: Pump (standpipe mm/in) | 50mm/2” |
| Drain Valve (mm/in) | 50mm/2” |
| Gas Rating (kW/BTU) | 5.9/20,000 |
| Gas Connection Size (“BSP) | 3/8 |
| Electrics | |
| 4.8kw Self Heat Washer (Volt/ph/Amp) | 230/1/10 |
| Self Heat Washer (Volt/ph/Amp) | 230/1/25 |
| Electric Heat Dryer (Volt/ph/Amp) | 230/1/25 |
| Gas Dryer (Volt/ph/Amp) | 230/1/10 |
| Optional Electrics | |
| 2.4kw Self Heat Washer (Volt/1ph/Amp) | 230/1/13 |
| 4.8kw Self Heat Washer (Volt/3ph/Amp) | – |
| Capacity (kg) | 9.5 |
| Height (mm) | 1994 |
| Width (mm) | 683 |
| Depth (mm) | 711 |
| Net weight (kg) | 125 |
| Drum volume (litres) | 201/201 |
| G Force | – |
| Microprocessor control | Yes |
| Free standing | Yes |
| No. of Water Connections (cold/hot) | – |
| Water Connection Size (“BSP) | – |
| Exhaust Diameter (mm/in) | 2 x 102/4” |
| Make-Up Air (m2/in2) | 0.026/40 |
| Airflow (m3/min – ft3/min) | 2x 5.1/180 |
| Drain Connection: Pump (standpipe mm/in) | – |
| Drain Valve (mm/in) | – |
| Gas Rating (kW/BTU) | 2 x 5.9/20,000 |
| Gas Connection Size (“BSP) | 2 x 3/8 |
| Electrics | |
| 4.8kw Self Heat Washer (Volt/ph/Amp) | – |
| Self Heat Washer (Volt/ph/Amp) | – |
| Electric Heat Dryer (Volt/ph/Amp) | 2 x 230/1/25 |
| Gas Dryer (Volt/ph/Amp) | 2 x 230/1/10 |
| Optional Electrics | |
| 2.4kw Self Heat Washer (Volt/1ph/Amp) | – |
| 4.8kw Self Heat Washer (Volt/3ph/Amp) | 400/3/10 |
Tilted control panels
The angled control panel makes it simple for customers to select the right cycle.
Pre-programmed cycles
For ease of selection and simple operation.
Robust lint filter
Features you'll love
Lifetime data history
Fully updatable firmware
Available in three options
Explore the benefits of the JLA 98 tumble dryer
How can the JLA 98 help you improve efficiency?
There are lots of coin-operated dryers for sale, but how do you choose the right one for your operation? The guide explains why the JLA 98 was designed and built with efficiency in mind and is packed full of features for everyday multi-load use.
Fast and energy-efficient cycles
Our new coin-operated JLA 98 tumble dryer offers fast, energy-efficient cycles. Plus, the machine is simple for users to operate thanks to its enhanced control panel.
On top of this, wide door opening makes loading and unloading easier and faster for your customers, and four different temperature settings mean they can adapt the drying programme to suit any load.
Robust coin-operated mechanism
Our coin-operated JLA 98 dryer comes with an extra-large integrated coin box that reduces hassle for business owners and staff members.
Plus, the machine also audits cycle counts and monies received. A time of day pricing modifier ensures that your revenue is always maximised.
Also available with...
Stackable washer-dryer combinations
If you’re short on space in your laundry room, our stackable JLA 98 tumble dryers provide you with the perfect solution.
Our JLA 98 tumble dryers allow you to double up on efficiency. The machines sit perfectly on top of our JLA 98 washing machines.
However, if you need extra drying capacity, you can also put two dryers together in an upright combination.
FAQs
Which sectors is a JLA 98 dryer appropriate for?
The JLA 98 dryer is suitable for any premises that offers a laundry option, such as laundrettes, campsites and student accommodation.
How big is a JLA 98 dryer?
It has a capacity of 9.5kg and a drum volume of 201 litres.
Can the JLA 98 dryer be stacked?
Yes, our range of JLA 98 dryers are stackable. You can choose to stack them on top of a coin-operated JLA 98 commercial washing machine, or as a dryer-dryer combo.
