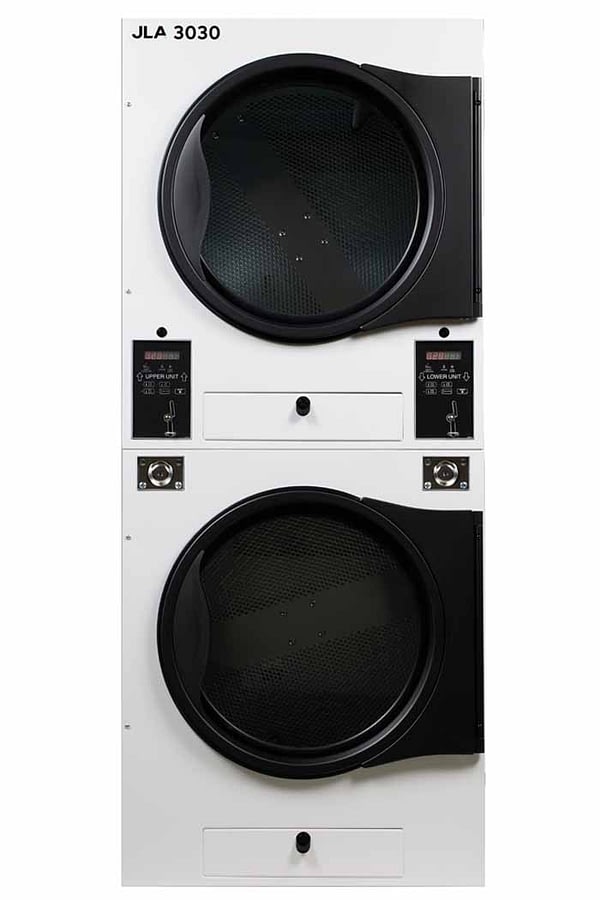

JLA 3030/ 4545 Coin-Operated Stacked Dryers
Our JLA 3030 and 4545 stacked coin operated tumble dryers deliver fast drying and helps you save on your energy bills.
Designed with fewer moving parts for less wear and tear, a large, easy-to-clean lint compartment and a heavy-duty door hinge, our JLA 3030 and 4545 tumble dryers will perform cycle after cycle.
Specifications
JLA 3030
JLA 4545
JLA 3030
| Capacity (kg) | 2×13 | |
| Volume (l) | 2×300 | |
| Diameter (mm) | 762 | |
| Depth (mm) | 660 | |
| Door opening diameter (mm) | 576 | |
| Temperature min. (°C) | 38 | |
| Temperature max (°C) | 88 | |
| Gas and steam version | 240V/50Hz/1ph – 20AMP | |
| Electric heat version | 415V/50Hz/3ph – 40Ax2 | |
| Drum (kw) | 0,20 | |
| Fan (kw) | 0,40 | |
| Exhaust flow rate (50 hz) (l/s) std/ecodry | 380/310 | |
| Diameter (mm) | Ø 200 (*) / 150 | |
| Gas connection (inch) | 1/2 | |
| Electric heating (kW) | 2×21-1 | |
| Gas heating (BTU) | 146,000 | |
| Energy consumption (kWh) – Electric | 9,4 / 9,7 | |
| Energy consumption (kWh) – Gas | 0,220 / 0,300 | |
| Noise level | 63 | |
| Net weight (kg) | 260kg | |
| Gross weight (kg) | 270kg | |
| Packing dimensions W x D x H (mm) | 830 x 1190 x 2030 | |
| Actual dimensions W x D x H (mm) | 800 x 1090 x 1940 |
JLA 4545
| Capacity (kg) | 2×20 | |
| Volume (l) | 2×420 | |
| Diameter (mm) | 838 | |
| Depth (mm) | 762 | |
| Door opening diameter (mm) | 683 | |
| Temperature min. (°C) | 38 | |
| Temperature max (°C) | 88 | |
| Gas and steam version | 240V/50Hz/1ph – 20AMP | |
| Electric heat version | 415V/50Hz/3ph – 40Ax2 | |
| Drum (kw) | 0,40 | |
| Fan (kw) | 0,40 | |
| Exhaust flow rate (50 hz) (l/s) std/ecodry | 570 | |
| Diameter (mm) | Ø 250 | |
| Gas connection (inch) | 1/2 | |
| Gas heating (BTU) | 95,000 | |
| Noise level | 65 | |
| Net weight (kg) | 300kg | |
| Gross weight (kg) | 320kg | |
| Packing dimensions W x D x H (mm) | 900 x 1370 x 2160 | |
| Actual dimensions W x D x H (mm) | 875 x 1235 x 2065 |
Features you'll love
High throughput
Concentrated airflow and
sealed cylinder rims help maintain a high
throughput without using lots of energy.
Single payment systems
Option for single payment system to store coins securely at a single point and aid its subsequent collection.
Save energy
Fast and efficient drying to help you save energy and reduce your bills.
Product documentation
Total Care
A unique, all-inclusive package, specially designed for you.
- Market-leading equipment with no upfront payments, repair bills or call-out charges – ever
- Installation at no extra cost
- Guaranteed local engineer response
- 24/7/365 support from friendly advisors
- Access to myJLA, with billing, essential documents, engineer booking and support in one place
- Round-the-clock monitoring to minimise downtime – we sort issues before you know about them
- Keep an eye on your energy usage with live bill estimates and CO2 emissions
Other products you may like...

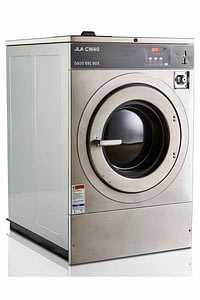

Coin-operated SMART Wash CW Washing Machines (9kg - 18kg)
Industrial grade build quality and reliable operation, ideal for launderettes.

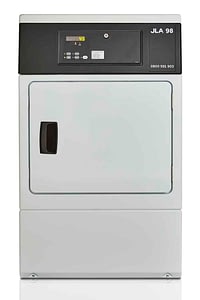

Coin-Operated JLA 98 Tumble Dryer
Our coin-operated JLA 98 tumble dryer has been designed to work even harder for your business.

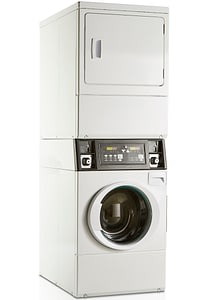

JLA 98 Coin-Operated Stacked Machines (9kg)
