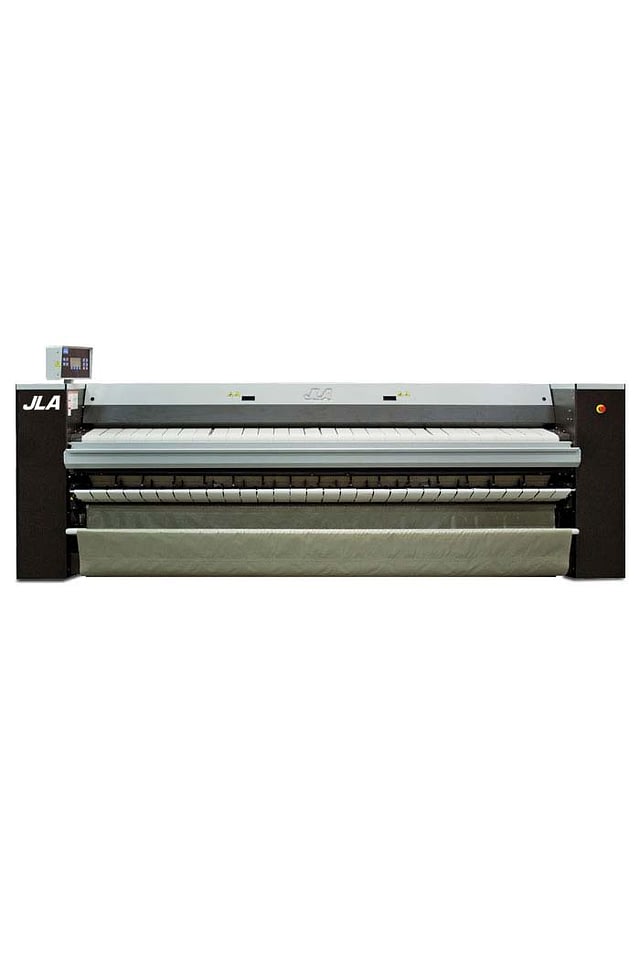

JLA 3.2 Iron
Process, finish and even fold large amounts of linen and other flatwork with the JLA 3.2 industrial steam dryer ironer. Front feeding and front return options will save time in busy commercial laundries while still providing a top-quality finish for every item.
| imensions (mm): 1630x4103x1173 | Roller (mm Ø): 510 |
| Electric Heat (kW): 63 | Speed (mtr/min): 1-9 |
| Capacity (Water Evaporation) (ltr/hr): 60 | Roller Length (Working Width) (mm): 3165 |
| Weight (G+E (steam) – net) (Kg): 1423 (1533) | Exhaust Outlet (mm Ø): 130 |
| Gas Connection (“BSP): 3/4 | Voltage Gas/Steam (Volt/ph/Amp): 230/1/10 |
| Voltage Electric (Volt/ph/Amp): 400/3/100 | Total Electric Power (kW): 63.85 |
| Gas Heat kW (Btu/hr): 77.3 (263/733) | Steam Heat kW (Btu/hr): 81.4 (277/748) |
| Steam Connection (mm Ø): 25.4 | Condensate Outlet (mm Ø): 19 |
| Safety Valve Discharge (mm Ø): 12.7 | Integrated Folder: Available |
