JLA SMART Washing Machines (7kg - 28kg)
Our range of SMART washing machines add yet another layer of efficiency to our already impressive laundry portfolio. By bringing together clever features and innovative design, we’ve made our JLA SMART washing machines faster, greener, stronger and smarter.
Specs at a glance
Capacity kg/lb | 7.5/16 |
Dimensions (mm) | 1139H 710W 790D |
Drum volume (L) | 75 |
Coin-op versions | Yes |
Industrial-grade build quality, reliable operation and large cabinets & drums with multi-coin mechanisms all combine to maximise your wash capacity and boost your income – while ensuring customers get the best wash quality every time.
• Easy-to-use coin mechanism – safe and secure payment for all retail requirements
• Rigid or free-standing options – to suit your specific installation requirements
• Stainless steel welded cabinet with heavy-duty door lock and handle – tested for over 30,000 cycles
• Low-and-large door opening – for easy loading and unloading of bulky items
• ‘Waterfall’ drum perforation – for optimal drainage and gentle washing of delicates
• JLA Sense absorption technology – utility savings of up to 32%
• Two-touch start – simply select programme and press start to begin
• Universal wash symbols – easily understandable
• Clear wash cycle display – showing time and temperature
• Monitoring functionality – to view and retrieve wash data for auditing purpose
SMART cycles
Unique absorption intelligence combines with best-in-class innovations to deliver optimum water, energy and detergent consumption on every cycle.
SMART controls
The intuitive controls on JLA SMART washing machines are designed with simplicity in mind.
SMART engineering
JLA SMART machines give you the reassurance of robust cabinets, hi-spec components and industrial-grade durability.
Now available with JLA Connect
Avoid downtime with 24/7 remote monitoring that helps us quickly spot and solve any issues.
The JLA SMART commercial washing machine range is ideal for the following industry sectors:
· Social care
· Construction
· Contract cleaners
· Education
· Equine and stables
· Facilities management
· Sports clubs
· Healthcare
· Health clubs
· Holiday parks and campsites
· Hotels and spas
· Housing
· Launderettes
· Prisons
· Pubs and restaurants
· Public sector
· Vets and animal care
· Hairdressers and salons
· University accommodation
Download documents

Built to last

Cost savings

OTEX-ready
Detailed product specifications
Capacity kg/lb | 7.5/16 |
Height mm (including feet) | 1139 |
Width mm | 710 |
Depth mm | 790 |
Weight kg/lb | 185/408 |
Drum Volume litres | 75 |
Spin Speed rpm | 1165 |
G-Force | 400 |
Door Opening Diameter mm | 330 |
Electrics | |
4.6 kW 1ph | 1ph/230V / 32A (std) |
6 kW 3ph | 3ph+N/ 400V/ 16A ph |
9 kW 3ph | – |
12 kW 3ph | – |
18 kW 3ph | – |
21.9 kW 3ph | – |
Steam Heated/Boiler Fed | 1ph/230V/ 16A |
No of Water connections (hot/cold) | 1/1 |
Water Connection Size BSP | 3/4” |
Gravity Drain Connection Diameter inch/mm | 3/76 |
(Optional) Steam Rating per cycle kg | 1.33 |
(Optional) Steam Connection Size inch | 1/2 |
Available in Coin-Op | Y |
Capacity kg/lb | 10/22 |
Height mm (including feet) | 1249 |
Width mm | 795 |
Depth mm | 795 |
Weight kg/lb | 210/463 |
Drum Volume litres | 105 |
Spin Speed rpm | 1075 |
G-Force | 400 |
Door Opening Diameter mm | 410 |
Electrics | |
4.6 kW 1ph | – |
6 kW 3ph | 1ph/230V / 32A |
9 kW 3ph | 3ph+N/400V/ 20A ph (std) |
12 kW 3ph | – |
18 kW 3ph | – |
21.9 kW 3ph | – |
Steam Heated/Boiler Fed | 1ph/230V/ 16A |
No of Water connections (hot/cold) | 1/1 |
Water Connection Size BSP | 3/4” |
Gravity Drain Connection Diameter inch/mm | 3/76 |
(Optional) Steam Rating per cycle kg | 1.4 |
(Optional) Steam Connection Size inch | 1/2 |
Available in Coin-Op | Y |
Capacity kg/lb | 13.5/30 |
Height mm (including feet) | 1249 |
Width mm | 795 |
Depth mm | 945 |
Weight kg/lb | 255/563 |
Drum Volume litres | 135 |
Spin Speed rpm | 1075 |
G-Force | 400 |
Door Opening Diameter mm | 410 |
Electrics | |
4.6 kW 1ph | – |
6 kW 3ph | 1ph/230V / 32A |
9 kW 3ph | 3ph+N/400V/ 20A ph |
12 kW 3ph | 3ph+N ; 400V/32A ph (std) |
18 kW 3ph | – |
21.9 kW 3ph | – |
Steam Heated/Boiler Fed | 1ph/230V/ 16A |
No of Water connections (hot/cold) | 1/1 |
Water Connection Size BSP | 3/4” |
Gravity Drain Connection Diameter inch/mm | 3/76 |
(Optional) Steam Rating per cycle kg | 2.1 |
(Optional) Steam Connection Size inch | 1/2 |
Available in Coin-Op | Y |
Capacity kg/lb | 18/40 |
Height mm (including feet) | 1434 |
Width mm | 970 |
Depth mm | 970 |
Weight kg/lb | 380/838 |
Drum Volume litres | 180 |
Spin Speed rpm | 980 |
G-Force | 400 |
Door Opening Diameter mm | 460 |
Electrics | |
4.6 kW 1ph | – |
6 kW 3ph | – |
9 kW 3ph | – |
12 kW 3ph | 3ph+N ; 400V/32A ph |
18 kW 3ph | 3ph+N ; 400V/40A ph (std) |
21.9 kW 3ph | – |
Steam Heated/Boiler Fed | 1ph/230V/ 16A |
No of Water connections (hot/cold) | 1/1 |
Water Connection Size BSP | 3/4” |
Gravity Drain Connection Diameter inch/mm | 3/76 |
(Optional) Steam Rating per cycle kg | 5.48 |
(Optional) Steam Connection Size inch | 1/2 |
Available in Coin-Op | Y |
Capacity kg/lb | 24/50 |
Height mm (including feet) | 1434 |
Width mm | 970 |
Depth mm | 1105 |
Weight kg/lb | 430/948 |
Drum Volume litres | 980 |
Spin Speed rpm | 400 |
G-Force | 546 |
Door Opening Diameter mm | 460 |
Electrics | |
4.6 kW 1ph | – |
6 kW 3ph | – |
9 kW 3ph | – |
12 kW 3ph | – |
18 kW 3ph | 3ph+N ; 400V/40A ph (std) |
21.9 kW 3ph | – |
Steam Heated/Boiler Fed | 1ph ; 230V ; 20A |
No of Water connections (hot/cold) | 1/1 |
Water Connection Size BSP | 3/4” |
Gravity Drain Connection Diameter inch/mm | 3/76 |
(Optional) Steam Rating per cycle kg | 7.67 |
(Optional) Steam Connection Size inch | 1/2 |
Available in Coin-Op | N |
Capacity kg/lb | 28/65 |
Height mm (including feet) | 1434 |
Width mm | 970 |
Depth mm | 1185 |
Weight kg/lb | 495/1092 |
Drum Volume litres | 915 |
Spin Speed rpm | 400 |
G-Force | 686 |
Door Opening Diameter mm | 460 |
Electrics | |
4.6 kW 1ph | – |
6 kW 3ph | – |
9 kW 3ph | – |
12 kW 3ph | – |
18 kW 3ph | – |
21.9 kW 3ph | 3ph+N ; 400V/45A ph |
Steam Heated/Boiler Fed | 1ph/230V/ 20A |
No of Water connections (hot/cold) | 1/1 |
Water Connection Size BSP | 3/4” |
Gravity Drain Connection Diameter inch/mm | 3/76 |
(Optional) Steam Rating per cycle kg | 6.55 |
(Optional) Steam Connection Size inch | 1/2 |
Available in Coin-Op | N |
JLA Total Care
All-inclusive laundry equipment package-
Brand new machines, no upfront costs
-
No repair bills or call out charges
-
Inclusive breakdown cover
-
Engineer response within 8 working hours
Machine purchase without cover
Outright machine purchase-
Equipment for your budget and needs
-
12 months warranty
-
Best deal possible
-
Expert advice for your sector
Machine purchase with cover
Brand-new equipment with breakdown cover-
Equipment matched to budget and needs
-
Annual compliance certification
-
5 day call-out with 24/7 support
-
16 hours response

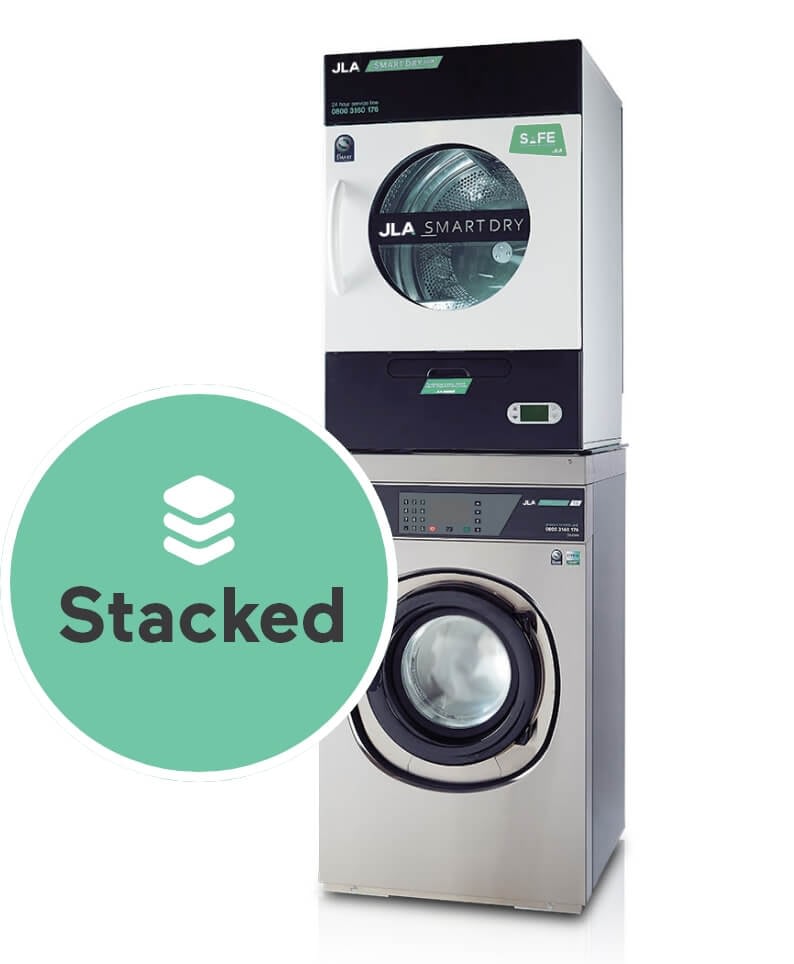

Stackable washer-dryer combinations
Our stackable SMART washing machines can be used below our commercial dryers. This way, you can double up on efficiency.
Plus, if you need extra drying capacity, then you can also put two dryers together in an upright combination.

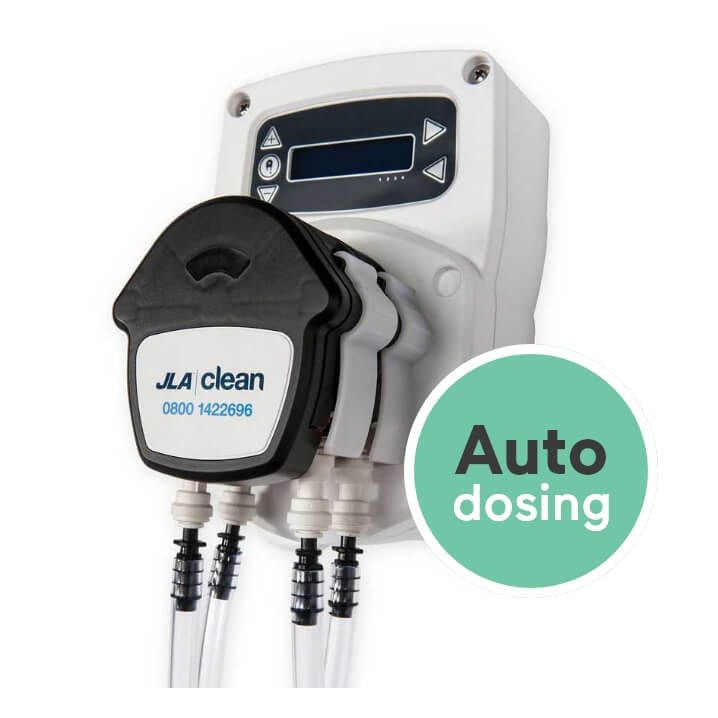

Auto-dosing
No more and no less than is needed for the best wash quality.
Our intelligent auto-dosing pumps allow you to be more economical with detergents, eliminating user error and guaranteeing the correct dose is always used. With no need to handle chemicals, it’s also safer for staff.


OTEX
All SMART machines can be fitted with our OTEX Ozone Disinfection system.
This allows you to run cold-water cycles which save even more energy, while killing 99.999% of harmful bacteria such as MRSA, C.difficile, E.Coli and Norovirus.

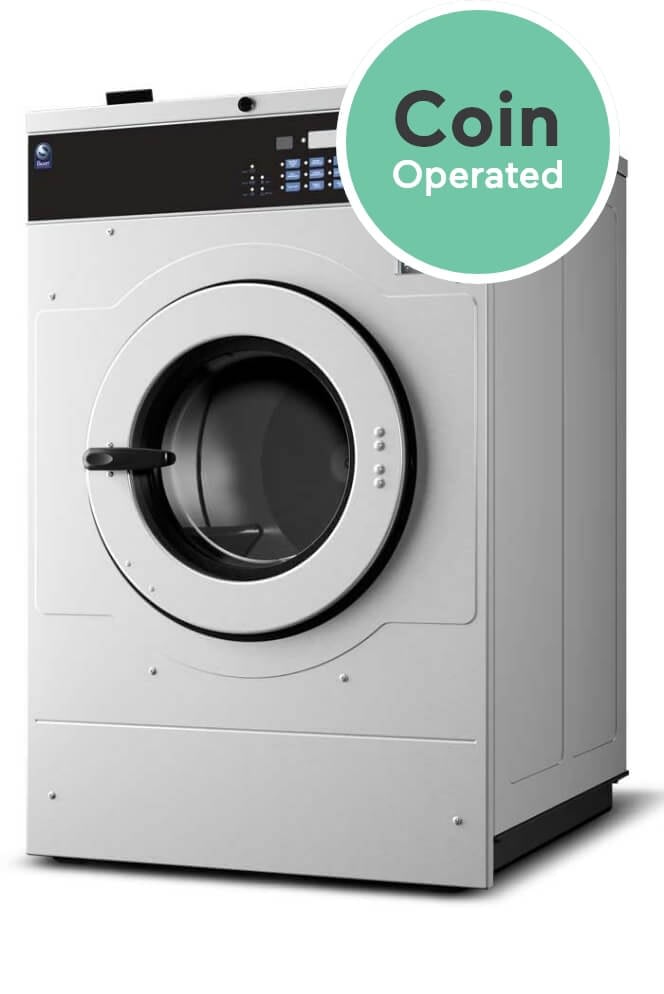

Coin-op systems
Our SMART washing machines are also available with our robust coin-op mechanism.
Extra-large integrated coin boxes reduce the need for frequent emptying and a full auditing of cycle counts and monies received plus a time of day pricing modifier ensure that revenue is maximised.

Why are JLA Smart Washers smart?
Discover why the JLA Smart washing machines are an innovative solution and trusted across various industries
Our Smart Guide demonstrates how to use the latest technology to optimise your laundry operations, make efficiencies and ensure your laundry is always fresh after each load.
SMART Washing Machines FAQ
What makes JLA SMART washing machines ‘smart’?
Our JLA SMART product range think about what they’re doing, so you don’t have to. Featuring absorption intelligence and other best-in-class innovations, they deliver optimum water, energy and detergent consumption on every cycle. Plus, each machine features SMART controls and SMART engineering features.
What makes JLA SMART washing machines so efficient?
JLA SMART washing machines come with JLA Sense. This acts as the machine’s ‘brain’ and calculates how much water is needed to get the best results. It then adjusts water and detergent levels to minimise waste while ensuring it never compromises on quality.
